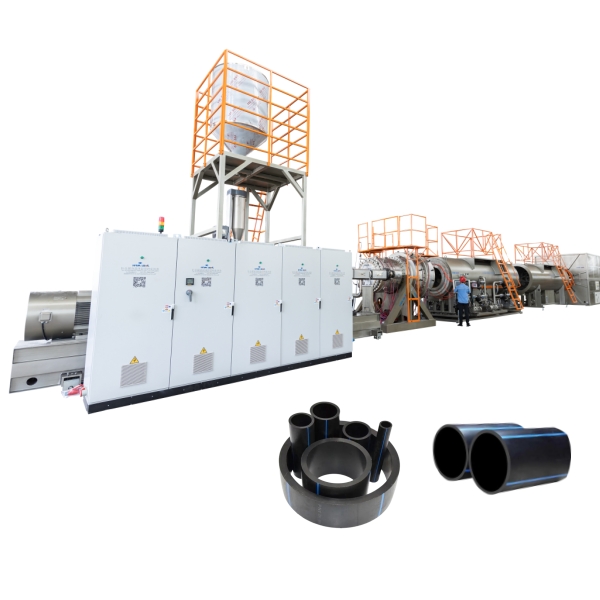

HDPE Solid Pipe Extrusion Line
Applications
The HDPE/MDPE water supply and gas supply pipe extrusion line developed by JWELL company is featured of unique structure, high automation, easy operation and reliable continuous manufacture performance. Pipe produced by our machine has the moderate rigidity&strength, good flexibility, creep resistant, environmental stress crack resistance and favorable hot melting property. As a result, this pipe is considered as the first choice for water and gas transportation system in cities. Add more extruders and replace some units for the production of multi-functional polyethylene pipes，such as two-layer pipes with two extruders, three-layer pipes with two machines or three machines.
Specifications
| Type | Diameter(mm) | Extruder | Output(kg/h) | Power(kw) |
| JWGPE-800 | φ400~φ800 | JWS90/38 | 800-1100 | 630 |
| JWGPE-1000 | φ500~φ1000 | JWS120/38 | 900-1200 | 700 |
| JWGPE-1200 | φ630~φ1200 | JWS90/38x2 | 900-1500 | 890 |
| JWGPE-1600 | φ1000~φ1600 | JWS120/38×2 | 1000-1700 | 1100 |
| JWGPE-2500 | φ1400~φ2500 | JWS120/38×2 JWS150/38×2 | 1500-2000 | 1350 |
| JWGPE-3000 | φ2000~φ3000 | JWS150/38×2 | 2000-2500 | 1350 |
Process steps
