Specifications

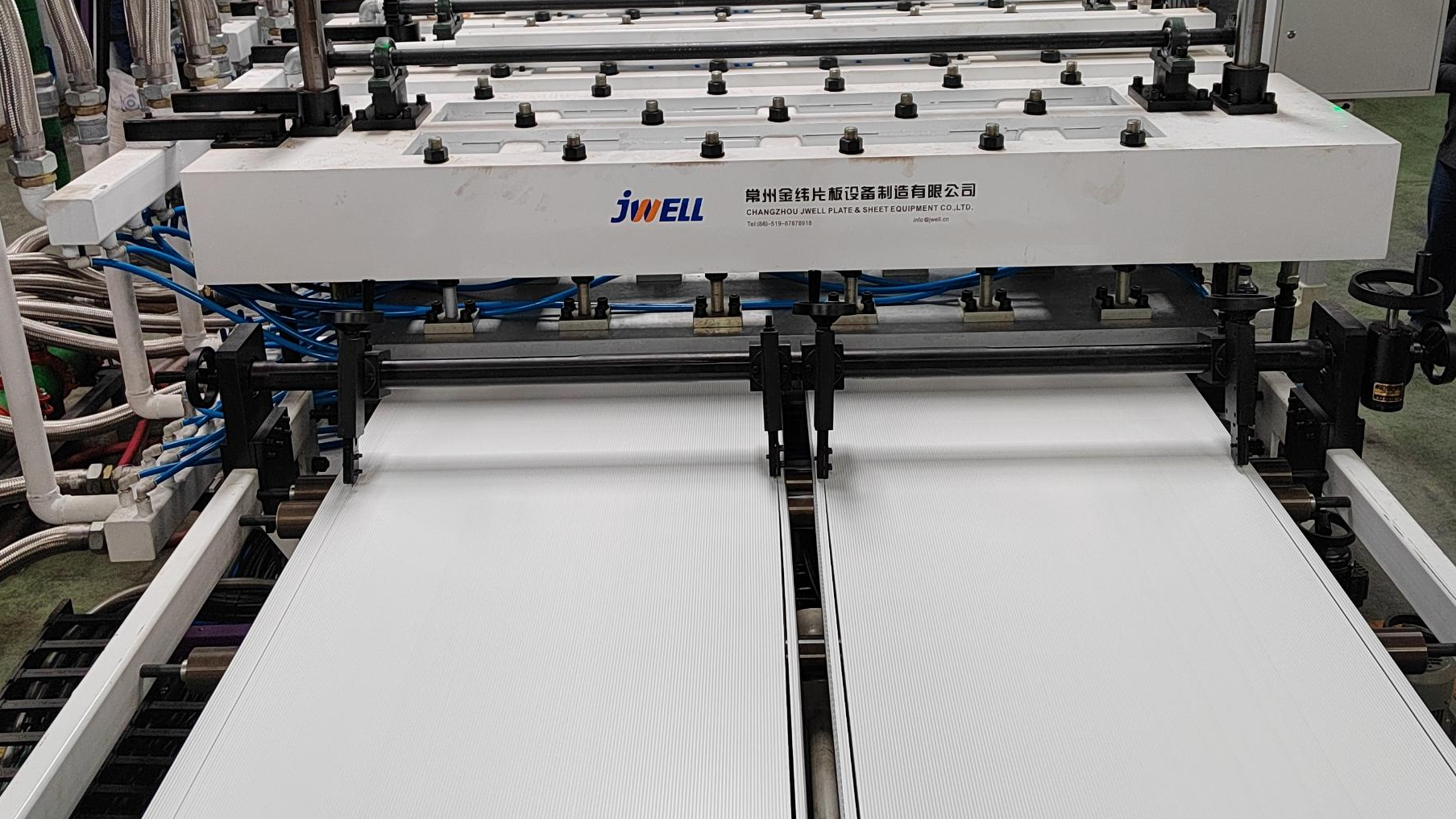

PP hollow building formwork double out extrusion lines Plate&Sheet Equipment Co.,Ltd produced PP one mold double out building template production line on the basis of the traditional 915mm single production line,that not only could meet the demand of large output and low energy
| Extruder model | Products width(mm) | Products thickness(mm) | Material | Capacity(Max.)(kg/h) |
| JWS130/35 - JWS80/30 | 915-1220 | 15-17 | PP | 400-500 |
| JWS150/35 - JWS80/35 | 915*2 | 15-17 | PP | 500-600 |
| JWS150/35 - JWS80/35 | 1220*2 | 15-17 | PP | 700-800 |

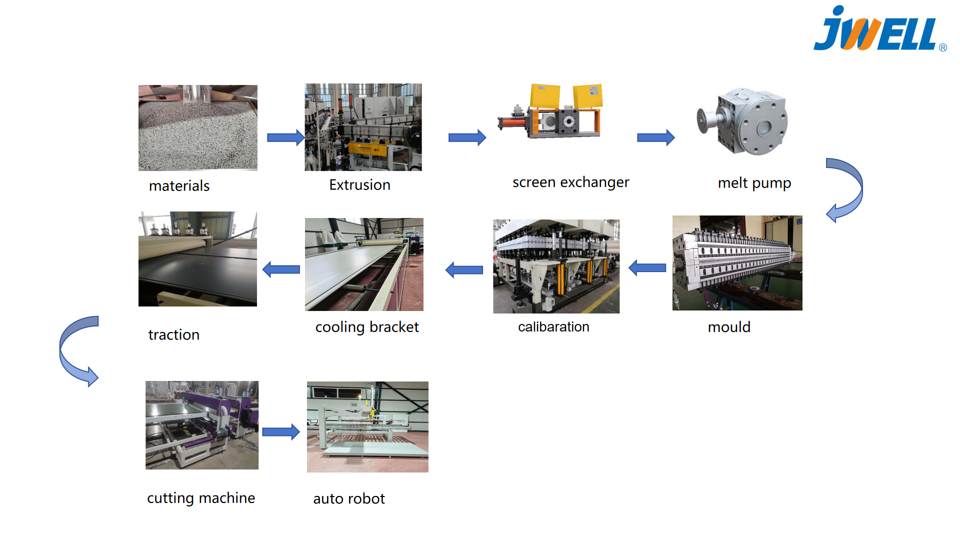

Process steps
Production line composition: single screw extruder, hydraulic mesh changer, metering pump, mold, setting machine, secondary traction machine, cooling bracket, secondary traction machine, cross cutting machine, conveyor composition.
