Specifications
Main applications:
automobile interior and exterior trims, thermoplastic winding pipes, sports and leisure, home building materials, transportation and logistics, aerospace.
CFRTP-UD unidirectional tape:
CFRTP unidirectional tape is a single-layer fiber reinforced thermoplastic composite sheet after the continuous fiber is spread, flattened, and impregnated with thermoplastic resin. Its characteristic is that the fibers are arranged in parallel with each other (0°direction) without interlacing. The product width is 300-1500mm, which can be customized as required.

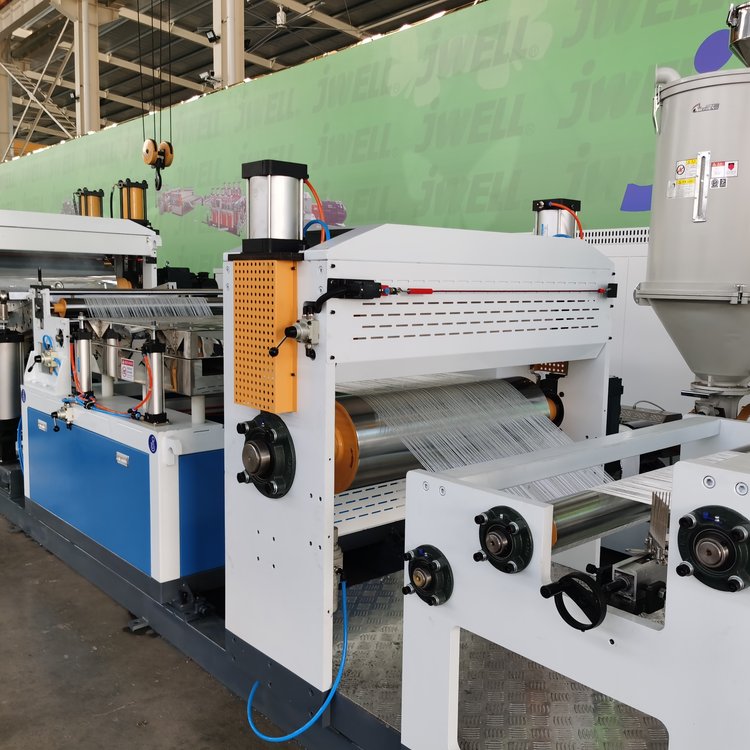

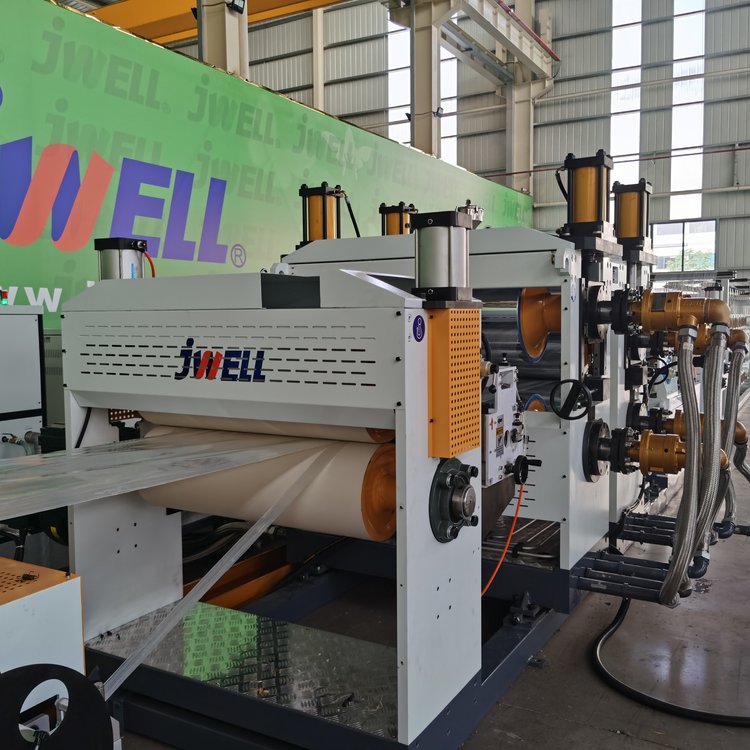

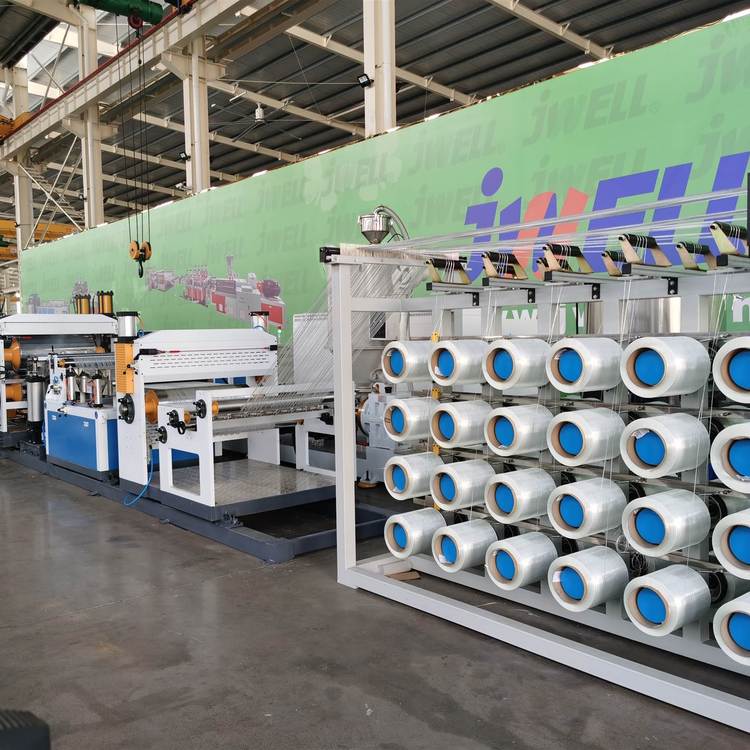

Advantages of the production line:
as the screw, barrel, mold and roller are designed, processed and manufactured by our company, we can quickly reflect the requirements of customers and provide customers with desired, satisfied and high quality products.
| Basic resins | PP, PE, PET, PA6, PPS, PEEK, |

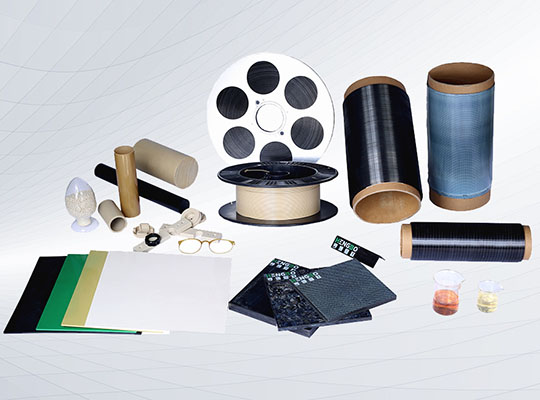

| Fiber type | glass fiber, carbon fiber, basalt fiber and other high-strength fibers |
| Product thickness | 0.1~0.45mm |
| Product width | 50~1500mm |
| Surface density of products | 100~650gsm |
| Fiber content of products | 40%~70% |
| Infiltration rate | ≥ 95% |
| Traction speed | 5~25m/min |

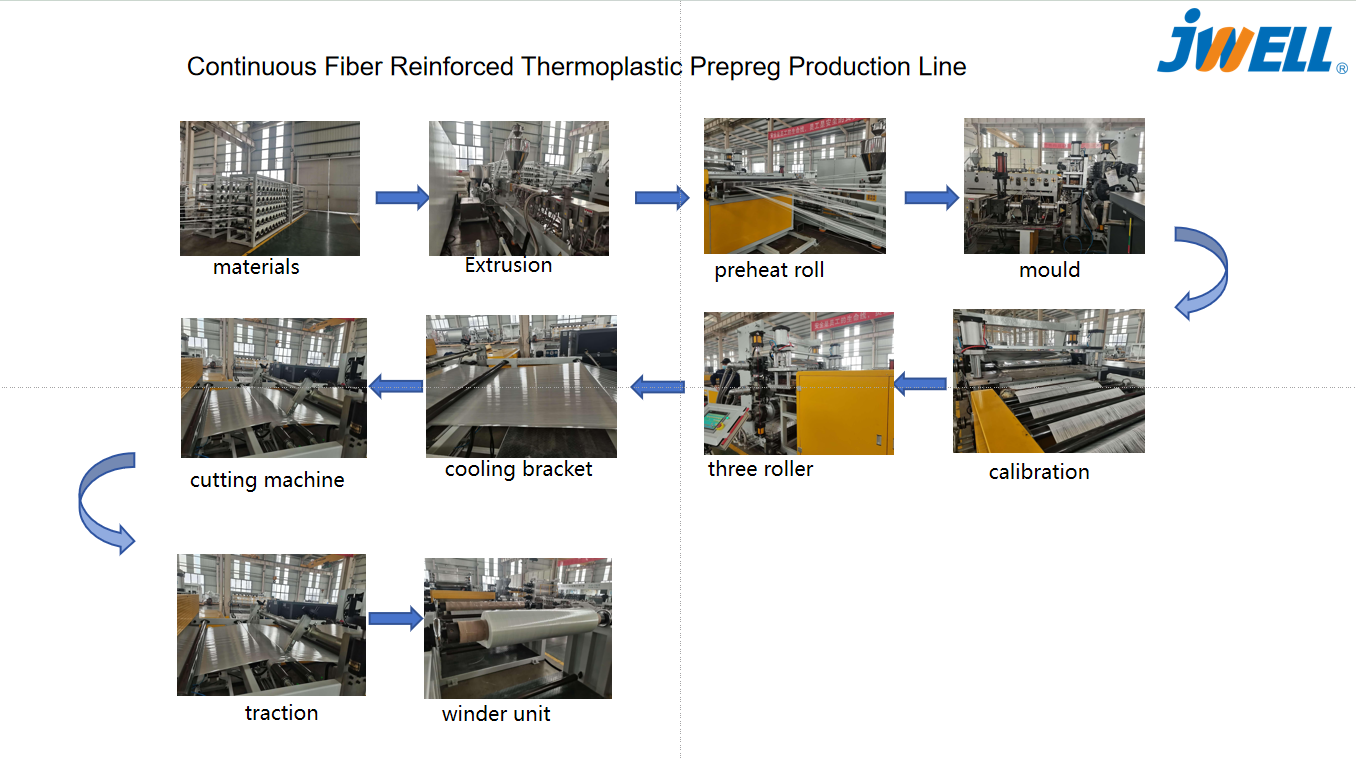

Process steps
